iOS Native SDK

validic_ios_native_1.12.2

📘

Legacy (v1) vs Inform (v2)

The same Validic Mobile SDKs are used by both Legacy (v1) and Inform (v2) API customers. To make the documentation easier to access, the Mobile Getting Started Guides and class documentation are hosted on our Inform (v2) documentation site.

The API documentation, however, is different between Legacy (v1) and Inform (v2). If you are an Inform (v2) API customer, you must use the Inform API documentation.

If you are a Legacy (v1) API customer, be sure to go back to the Legacy API documentation.

Requirements


To get started, download the iOS framework from the Validic Mobile portal.

The Validic Mobile library supports iOS 10 and above and requires Xcode version 11 or greater to compile.

Installation


The Validic Bluetooth, HealthKit and OCR frameworks are dependant on the Core framework.

Copy ValidicCore, ValidicBluetooth, ValidicHealthKit, ValidicOCR and copy-validicmobile.rb files to the same folder where your Xcode project file (xcodeproj) is located.

In Xcode, open your project and select your target.

In the General tab there will be two sections at the bottom of the screen labeled Linked Frameworks and Libraries and Embedded Binaries. Add the frameworks to the project by clicking the + button under the Embedded Binaries section.

Select Add Other.. from the drop down menu.

You should now see each framework added under Linked Frameworks and Libraries, Embedded Binaries and in the file browser on the left. Your project should look like the image below after importing the frameworks to the Xcode project.

In the “Build Phases” tab add a new build phase by clicking the + button at the top and selecting “New Run Script Phase”.

In the new phase’s text area paste in ruby copy-validicmobile.rb.

NOTE: The order of build phases is very important. Make sure the run script phase is last in Build Phases tab.

In the Build Settings tab search for Enable Bitcode option and make sure it’s set to YES.

NOTE: in new projects Bitcode is enabled by default and at some point will be required by Apple. If you are working with other frameworks that are NOT Bitcode enabled, Enabled Bitcode option should be set to No.

Bridging with Swift

To use the frameworks with Swift, you will need to add a Bridging Header. In Xcode go to the File menu and under New select File (cmd+N). In the New File dialog box choose “Header File”.

Name the header file “[ProjectName]-Bridging-Header.h”.

Select ProjectName-Bridging-Header.h and add the following lines

#import <ValidicCore/ValidicCore.h>
#import <ValidicBluetooth/ValidicBluetooth.h>
#import <ValidicOCR/ValidicOCR.h>
#import <ValidicHealthKit/ValidicHealthKit.h>

Then go to the build settings of your target and search for the Swift Compiler section and double click on the Objective-C Bridging Header field. In the dialog box that appears enter the name of the bridging header file ProjectName-Bridging-Header.h.

Test Installation

At this point installation of the frameworks is finished, let's do a test to make sure the project can find and compile the frameworks. Open the projects AppDelegate.swift file. At the top of the file add the following

import ValidicCore

Now add a print statement in the application:didFinishLaunchingWithOptions function

func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?) -> Bool {
        print(VLDSession.libraryVersion())
        return true
    }

In the console, you should see the library version printed out

Logging


The Core and Healthkit frameworks include logging which can be enabled in debug or production app builds to get further insight into the following key activities:

  • Session start - when Validic user session is initialized
  • Subscription requests for Healthkit - when user initializes Healthkit sharing
  • Healthkit record creation - when records are submitted to the Validic server

To enable logging, use VLDLogging:

[[VLDLogging sharedInstance] setLog:VLDLogBluetooth & VLDLogCore];

To retrieve the logs, you can:

  • Connect the iPhone to a computer running XCode and view the Console logs while running your app
  • Use Sysdiagnose to retrieve the system_logs.logarchive file (helpful video)

To filter the logs down, try searching for VLDSession for session initialization, VLDHealthkit for subscription setting, and VLDCore for submissions to server.

Core


The Core framework provides convenient methods to the Validic API for uploading VLDRecord objects to Validic’s servers. It handles creating proper URLs, constructing the request object and parsing the server response. When not using [VLDSession submitRecord:] to upload data, it is recommended to use VLDAPIClient.

Requirements

The Validic Mobile library supports iOS 10 and above and requires Xcode version 9 or greater to compile.

Manage a Session

VLDSession stores a user, their current HealthKit subscriptions and all pending record uploads. This data is persisted between app launches but is deleted if endSession is called.

VLDSession is a singleton object and must be accessed by its sharedInstance method. The different frameworks of the Validic Mobile library rely on a valid user existing in the current VLDSession singleton object.

Start a session

To start a VLDSession you will need a VLDUser object. A Validic user can be provisioned using the Validic API, documentation is available for both Legacy API (V1) and Inform API (V2) Inform APIs. The credentials needed are a Validic user ID, an organization ID and a user access token. The user access token value you provide to the SDK is the "user access token" value if you use the Legacy (V1) API. The user access token value you provide to the SDK is the "mobile token" value if you use the Inform (V2) API.

let user = VLDUser(validicUserID:"user_id", organizationID:"organization_id", accessToken:"access_token")

The user object is then passed to the startSessionWithUser: method.

VLDSession.sharedInstance().start(with: user)

Best Practices

Check for an existing user in VLDSession before performing core logic related to your app.

guard let _ = VLDSession.sharedInstance().user else {
    showLoginScreen()
    return
}

Starting a session will delete the current session if it exists, clearing the cache user and any pending records that haven’t been uploaded.

Record types

The Validic Mobile library supports the following record types:

  • VLDBiometrics - comprised of a user’s biometric health data such as blood pressure, body temperature, SpO2, cholesterol, heart rate, and blood and hormone levels.
  • VLDDiabetes - comprised of a user’s blood glucose and hormone levels related to diabetes treatment and management.
  • VLDFitness - comprised of a user’s activities that are undertaken with the express purpose of exercising. These activities have a defined duration (time, distance, elevation, etc.)
  • VLDNutrition - comprised of a user’s activities related to calorie intake and consumption and nutritional information (such as fat, protein, carbohydrates, sodium, etc.)
  • VLDRoutine - comprised of a user’s activities that occur regularly throughout the day, without the specific goal of exercise, for example calories burned and consumed, steps taken, stairs climbed. These activities are aggregate throughout the day. Also includes Apple Exercise Minutes and Mindful Minutes.
  • VLDSleep - comprised of a user’s measurements related to the length of time spent in various sleep cycles, as well as number of times woken during the night.
  • VLDWeight - comprised of a user’s weight and body mass.

Record Submission Notifications

When VLDSession uploads a record it will send an NSNotification. To listen for this notification add an observer to the NSNotificationCenter with the constant kVLDRecordSubmittedNotification.

 NotificationCenter.default.addObserver(self, selector: #selector(recordDidUpload(_:)), name: NSNotification.Name.vldRecordSubmitted, object: nil)

When the notification is posted the object property of the notification will contain the VLDRecord object uploaded.

@objc func recordDidUpload(_ notification: Notification) {
    guard let record = notification.object as? VLDRecord else {
        return
    }
}

When VLDSession uploads an image it will send an NSNotification. To listen for this notification Add an observer to NSNotificationCenter with the constant kVLDRecordImageSubmittedNotification.

 NotificationCenter.default.addObserver(self, selector: #selector(imageDidUpload(_:)), name: NSNotification.Name.vldRecordImageSubmitted, object: nil)

The object property of the notification will contain a VLDMedia object containing an ID for the image, and its URL.

@objc func imageDidUpload(_ notification: Notification) {
    guard let record = notification.object as? VLDMedia else { return }
    print(record.mediaID ?? "")
    print(record.mediaURL ?? "")
}

If a 400 error is returned from the server, the record will be discarded and an NSNotification will be posted. To listen for this notification add an observer to the NSNotificationCenter with the constant kVLDRecordSubmissionFailedNotification.

 NotificationCenter.default.addObserver(self, selector: #selector(recordSubmissionDidFail(_:)), name: NSNotification.Name.vldRecordSubmissionFailed, object: nil)

The object property of the notification will contain the invalid VLDRecord object. The userInfo dictionary for this notification will contain one key, error with the NSError object for the failed upload.

@objc func recordSubmissionDidFail(_ notification: Notification) {
    guard let userInfo = notification.userInfo as? [String: Any],
        let error = userInfo["error"] as? NSError,
        let record = notification.object as? VLDRecord else {
            return
    }
    print("Record submission failed with error: \(error)")
    print("Record: \(record)")
}

If VLDSession attempts to upload the image associated with a record and the upload fails, an NSNotification, kVLDRecordImageSubmissionFailedNotification will be posted.

NotificationCenter.default.addObserver(self, selector: #selector(imageSubmissionDidFail(_:)), name: NSNotification.Name.vldRecordImageSubmissionFailed, object: nil)

@objc func imageSubmissionDidFail(_ notification: Notification) {
    guard let userInfo = notification.userInfo as? [String: Any],
        let error = userInfo["error"] as? NSError,
        let media = notification.object as? VLDMedia else {
            return
    }
    print("Record submission failed with error: \(error)")
    print("Media: \(media)")
}

Bluetooth


Overview

The Validic Mobile SDK supports Bluetooth Low Energy devices via three integration methods, as follows:

Bluetooth framework - customBluetooth framework - genericOne Touch framework
A custom integration via the Bluetooth framework is most the common integration method. These devices are assigned unique peripheralIDs and use custom Bluetooth Profiles.A generic integration via the Bluetooth framework is available for glucose meters only. These devices are supported through peripheralID = 1000 and use the Bluetooth standard Glucose Profile.The One Touch framework is a wrapper used alongside LifeScan's Mobile Connectivity Kit.

Readings from custom or generic Bluetooth devices supported in the Bluetooth framework can be captured and uploaded to Validic with VLDBluetoothPeripheralController. A list of supported devices can be obtained calling the static function supportedPeripherals on VLDBluetoothPeripheral. You must implement the VLDBluetoothPeripheralControllerDelegate protocol to receive callbacks so that the user may be prompted to take the measurement at the right time, display the measurement value, or get notified of any errors that occurred.

Please refer to the LifeScan section for details on how to use the One Touch framework.

Setup

iOS 13 and later

For apps with a deployment target of iOS 13 and later, use NSBluetoothAlwaysUsageDescription instead of NSBluetoothPeripheralUsageDescription. mentioned below.

<key>NSBluetoothAlwaysUsageDescription</key>
<string>Get Bluetoth readings</string>

Prior Versions

If your app has a deployment target earlier than iOS 13, add both NSBluetoothAlwaysUsageDescription and NSBluetoothPeripheralUsageDescription to your app’s Information Property List file. Devices running earlier versions of iOS rely on NSBluetoothPeripheralUsageDescription, while devices running later versions rely on NSBluetoothAlwaysUsageDescription.

If viewing the raw source add the NSBluetoothPeripheralUsageDescription key as displayed below.

<key>NSBluetoothPeripheralUsageDescription</key>
<string>Get Bluetoth readings</string>

If these values are not provided, the app will crash at runtime with an error reported to the console log.

Peripherals

VLDBluetoothPeripheral represents Bluetooth peripheral models that can be discovered or read from by VLDBluetoothPeripheralController.

A peripheral object contains various information to be displayed to the user:

  • name - Name of the peripheral comprised of the manufacturer name and model number.
  • pairingInstructions - Text telling the user how to pair the peripheral, if the peripheral requires pairing.
  • instructions - Text telling the user how to initialize the reading process with the peripheral.
  • readingInstructions - Text telling the user what to do during the reading process.
  • imageURL - URL for an image of the peripheral.

Supported Peripherals

To retrieve a list of peripherals that are supported in the Bluetooth framework call:

guard let supportedPeripherals = VLDBluetoothPeripheral.supportedPeripherals() as? [VLDBluetoothPeripheral] else { return }

for peripheral in supportedPeripherals {
    print("Peripheral: \(peripheral.name())")
}

Other methods are available on VLDBluetoothPeripheral to allow retrieval of a specific peripheral, or to retrieve a list of peripherals of a specific peripheral type. See the VLDBluetoothPeripheral documentation for additional information.

Generic Peripherals

You can communicate with glucose meters that are supported via the Bluetooth generic Glucose Profile using peripheralID = 1000

Unlike custom-supported peripherals, this generic peripheral has generic object information. You can substitute in your own device name, image, and instructions within your app so that end users see device information that's applicable to the device you wish to support.

Filtering

To get a subset of devices you can use the built in filter method on Arrays in Swift. Check out the Supported Peripherals list to find the ID of the devices you want to display. For example, if you only want to display the Pyle Health Therometer you would:

guard let supportedPeripherals = VLDBluetoothPeripheral.supportedPeripherals() as? [VLDBluetoothPeripheral]
let devices = peripherals.filter { $0.peripheralID == 1 }

Pair

Certain peripherals require pairing with the mobile device before a reading can be taken. You can check the requiresPairing property on the VLDBluetoothPeripheral object to know if it must be paired.

To pair a peripheral with the mobile device, call the pairPeripheral: method on VLDBluetoothPeripheralController.

let peripheral: VLDBluetoothPeripheral
let controller = VLDBluetoothPeripheralController()
controller.delegate = self

controller.pairPeripheral(peripheral)

To know if a peripheral was successfully paired you will need to implement the pairing methods of the VLDBluetoothPeripheralControllerDelegate protocol.

func bluetoothPeripheralController(_ controller: VLDBluetoothPeripheralController!, didPairPeripheral peripheral: VLDBluetoothPeripheral!) {
    // Peripheral paired successfully
}

func bluetoothPeripheralController(_ controller: VLDBluetoothPeripheralController!, didNotPairPeripheral peripheral: VLDBluetoothPeripheral!, error: Error!) {
    // Peripheral did not pair
}

Read

Once you are ready to read from a peripheral, the process is fairly similar to the pairing process. You should initially show the peripheral’s instructions and then show the reading instructions once bluetoothPeripheralController:isReadyToReadFromPeripheral: is called.

let peripheral: VLDBluetoothPeripheral = // A peripheral from the supportedPeripherals list
let controller = VLDBluetoothPeripheralController()
controller.delegate = self

controller.read(from: peripheral)

You must also implement the reading methods of the VLDBluetoothPeripheralControllerDelegate protocol.

func bluetoothPeripheralController(_ controller: VLDBluetoothPeripheralController!, isReadyToReadFrom peripheral: VLDBluetoothPeripheral!) {
    // Time to present the readingInstructions to the user
}

func bluetoothPeripheralController(_ controller: VLDBluetoothPeripheralController!, shouldSubmitReadings records: [VLDRecord]!, from peripheral: VLDBluetoothPeripheral!) -> Bool {
    // To have the reading automatically added to the session and uploaded
    // return YES from this method. To first have the reading validated by the user
    // you can return NO from this method. Once the user has validated the reading
    // you must manually submit the record by calling VLDSession.sharedInstance().submitRecord(record)
    return true
}

func bluetoothPeripheralController(_ controller: VLDBluetoothPeripheralController!, didCancelReadingFor peripheral: VLDBluetoothPeripheral!) {
    // Reading was cancelled
}

func bluetoothPeripheralController(_ controller: VLDBluetoothPeripheralController!, readingFailedFor peripheral: VLDBluetoothPeripheral!, error: Error!) {
    // Reading failed
}

Passive Read

Overview

The ValidicMobile library supports passively reading from a given set of Bluetooth peripherals. Passive Bluetooth reading is a long lived capability. Once enabled, the library will listen for and read from the specified peripherals. Reading will automatically occur once the peripheral is discovered regardless of app state. This includes if the application is currently in the foreground, in the background, or has been terminated due to memory pressure. Apps using this feature must have been started by the user at least once since the iOS device has booted otherwise the feature will not be active even if enabled.

Setup

Passive Bluetooth reading relies upon iOS Bluetooth state restoration and background processing support. Apps using passive reading need to set Bluetooth as a required background mode in the Info.plist. In Xcode, in the Info.plist add a new key, Required background modes, add an item with value App communicates using CoreBluetooth.

If editing the XML source file, add Bluetooth-central background mode as follows:

    <key>UIBackgroundModes</key>
    <array>
        <string>Bluetooth-central</string>
    </array>

Passive Readings

VLDBluetoothPassiveManager is a singleton which coordinates the passive reading process. Passive reading is enabled by passing it an array of peripheral IDs:

VLDBluetoothPassiveManager.sharedInstance().peripheralIDs = [1, 2]

Or by passing an array of peripherals:

if let peripheral = VLDBluetoothPeripheral(forID: 1) {
    VLDBluetoothPassiveManager.sharedInstance().setPeripherals([peripheral])
}

To disable passive reading, set the peripheralIDs property to an empty array or nil.

VLDBluetoothPassiveManager.sharedInstance().peripheralIDs = nil

To support state restoration, a method on the passive manager must be called on app launch. This should be done in the application:didFinishLaunchingWithOptions: method of the AppDelegate as follows:

    func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplicationLaunchOptionsKey : Any]? = nil) -> Bool {
        VLDBluetoothPassiveManager.sharedInstance().restoreState()
        return true
    }

State restoration will automatically start the app in the background when a requested peripheral is discovered. Within application:didFinishLaunchingWithOptions:, apps can determine if they were launched in the background and avoid expensive operations.

Passive Readings Notifications

Passive readings are automatically sent to the Validic server. Session notifications are sent on upload success or failure. Passive Bluetooth specific notifications are sent when a device is discovered and becomes ready to read. Notifications are also sent for reading success and failure. These notifications specify the associated peripheral ID in the userInfo dictionary with a key, peripheralID.

  • kVLDBluetoothPassiveDidReadNotification is sent when records are read. The notification object is an array of VLDRecord read from the peripheral.
  • kVLDBluetoothPassiveDidFailNotification is sent when failing to read from a discovered peripheral.
  • kVLDBluetoothPassiveIsReadyToReadNotification is sent when the peripheral becomes ready to read. This notification is only sent out for devices that are discoverable before a measurement is taken. It is important to handle this notification in an app and provide feedback to the user that the device has been discovered and is ready to take a measurement. Since Passive Bluetooth reading is usually performed in the background, a standard UI is not available. A local notification can be sent with sound to provide feedback to the user that the app is ready to read from the peripheral. If the user doesn’t hear the sound, it indicates that the device has not been discovered.

The following code fragment registers an observer for the kVLDBluetoothPassiveIsReadyToReadNotification notification and sends a local notification including the name of the peripheral. A similar process could be done for the kVLDBluetoothPassiveDidReadNotification to confirm to the user that a reading was successfully taken.

NotificationCenter.default.addObserver(forName: NSNotification.Name.vldBluetoothPassiveIsReadyToRead, object: nil, queue: nil) { (notification) in
    if UIApplication.shared.applicationState == .background {
        if let peripheralID = notification.userInfo?["peripheralID"] as? UInt,
            let peripheralName = VLDBluetoothPeripheral.init(forID: peripheralID)?.name()
        {
            let localNotification = UILocalNotification()
            localNotification.alertBody = "Ready to read \(peripheralName)"
            UIApplication.shared.presentLocalNotificationNow(localNotification)
        }
    }
}

Considerations

Agamatrix

The Agamatrix Jazz Wireless 2 glucose meter, supported via a custom Bluetooth integration (peripheralID = 32), requires an authentication key, which is provided by Agamatrix, in order to communicate with the meter. To configure your Agamatrix authentication key for use with the Validic Mobile SDK:

  1. Create a file named agamatrix-authkey.json
  2. File contents should be your Agamatrix key without the hex prefix notation 0x. For example, if your key is 0x011234567890987654321 then your file contains {"key": "011234567890987654321"}.
  3. Add the agamatrix-authkey.json file to the root of your mobile project.

Passive Read

There are situations where passive Bluetooth reading is stopped and requires the app to be relaunched. These situations include:

  • When the user explicitly kills the app by swiping up on the app switcher view, the app will not be restarted by iOS when a peripheral is discovered.
  • If the iOS device is rebooted, state restoration is no longer in effect and iOS will not automatically restart the app when a peripheral is discovered. The app needs to be run at least once after reboot. When the app is launched the passive manager remembers what peripherals if any where being passively read and restarts the capability.

Passive Bluetooth reading has some additional considerations due to the behavior of the iOS Bluetooth stack and background support.

  • Interactive, ie non-passive, Bluetooth operations will suspend passive Bluetooth processing until the interative operation completes.
  • When scanning for peripherals in the background, iOS reduces the frequency and duration of time the phone listens for devices. This may cause some peripherals to not be discovered in the background. This varies by phone model and peripheral. Generally older phone models are more likely to miss discovery of a peripheral.
    • Nonin pulse oximeters, ChoiceMMed pulse oximeter and scale are not usually detectable when in the background.
    • The Pyle thermometer is sometimes not discovered on old phone when the app is in the background.
  • iOS has additional heuristics to determine scanning frequency which may not be documented. If multiple apps on the phone are performing background scanning, scanning may become more infrequent.
  • To prevent repeated attempted reads from a device for one actual reading, the passive manager waits after a successful read until the device stops broadcasting, then waits an additional few seconds before acknowledging the device again. If attempting multiple readings in quick succession, the second reading may not be read. Instead the user should wait until the device powers off and then wait an additional 15 seconds or longer before attempting another reading.

Healthkit


The Validic Mobile library provides a simple way to read and upload data from HealthKit to Validic. VLDHealthKitManager can subscribe to specific HealthKit sample types and automatically upload them to Validic in the background as new data is recorded.

Before you can use the HealthKit features of the library, be sure to import the HealthKit framework into your project and enable the HealthKit entitlements for your app.

Setup

  • The HealthKit framework requires filling in the Privacy - Health Share Usage Description and Privacy - Health Update Usage Description keys and values if edited in Xcode.

If viewing the raw source add the NSHealthShareUsageDescription and NSHealthUpdateUsageDescription keys as displayed below.

<key>NSHealthShareUsageDescription</key>
<string>Get Health data</string>
<key>NSHealthUpdateUsageDescription</key>
<string>Write Health data</string>

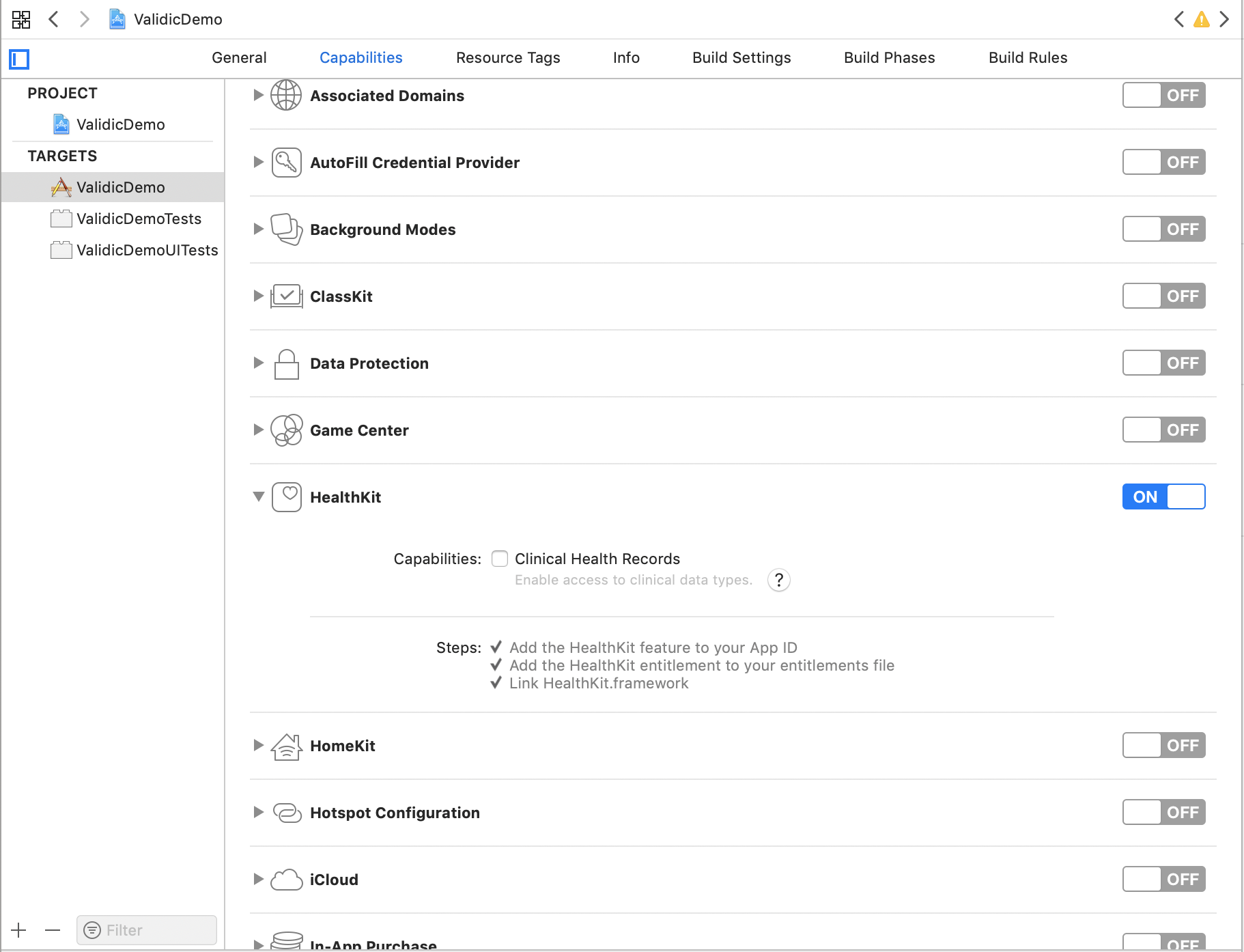

To use HealthKit in your project you must enable it from the Capabilities tab. Select your project target and then select the Capabilities tab, scroll down until you find HealthKit and select the switch to turn HealthKit on. Your project should look like the screenshot below.

In new Xcode projects the HealthKit framework will be linked automatically when the framework is imported by a project file. To confirm this navigate to the Build Settings tab of the project target and search for Link Frameworks. Under Under Clang - Lanuage - Modules you’ll see Link Frameworks Automatically set to Yes.

Subscription sets

Useful sets of sample types are defined in an VLDHealthKitSubscriptionSet enum. Sample types for a subscription set can be retrieved using the sampleTypesForSubscriptionSet: static method of the VLDHealthKitSubscription class. The following subscription sets are available:

  • VLDHealthKitSubscriptionSetRoutine: Includes Flights Climbed, Active Energy Burned, Distance Walking/Running, Step Count, Basal Energy Burned, Apple Stand Hours, Apple Exercise Minutes, Mindful Minutes (from the Apple Watch), Wheelchair Distance, and Wheelchair Push Count.
  • VLDHealthKitSubscriptionSetDiabetes: Blood Glucose sample type.
  • VLDHealthKitSubscriptionSetWeight: Includes Body Mass (weight), Height, Body Fat Percentage, Lean Body Mass, and Body Mass Index.
  • VLDHealthKitSubscriptionSetFitness: Includes Workout, Nike Fuel, and Cycling Distance.
  • VLDHealthKitSubscriptionSetSleep: Sleep Analysis sample type, this set tracks time in bed, time awake, and time asleep.
  • VLDHealthKitSubscriptionSetBasicNutrition: Includes Calcium, Carbohydrates, Cholesterol, Fiber, Iron, Potassium, Protein, Saturated Fat, Sodium, Sugar, Total Fat, Energy Consumed, and Dietary Water.
  • VLDHealthKitSubscriptionSetReproductiveHealth: Includes Sexual Activity, Cervical Mucus Quality, Intermenstrual Bleeding, Menstrual Flow, Ovulation Test Result, and BasalBodyTemperature.
  • VLDHealthKitSubscriptionSetBiometrics: Includes Systolic Blood Pressure, Diastolic Blood Pressure, Heart Rate, Body Temperature, and SpO2 (oxygen saturation).

Subscribe to changes

Subscribing to HealthKit updates only needs to be done once for a user. The subscriptions will be persisted across app launches in the VLDSession object. A typical use of the HealthKit framework would be to create a UISwitch that adds the required subscriptions when turned on and removes them when turned off. Example:

func toggleHealthKit(_ sender: UISwitch) {
    if sender.isOn {
        var sampleTypes = VLDHealthKitSubscription.sampleTypes(for: VLDHealthKitSubscriptionSet.routine)
        sampleTypes?.append(contentsOf: VLDHealthKitSubscription.sampleTypes(for: VLDHealthKitSubscriptionSet.biometrics))
        sampleTypes?.append(contentsOf: VLDHealthKitSubscription.sampleTypes(for: VLDHealthKitSubscriptionSet.diabetes))
        sampleTypes?.append(contentsOf: VLDHealthKitSubscription.sampleTypes(for: VLDHealthKitSubscriptionSet.sleep))
        sampleTypes?.append(contentsOf: VLDHealthKitSubscription.sampleTypes(for: VLDHealthKitSubscriptionSet.basicNutrition))
        sampleTypes?.append(contentsOf: VLDHealthKitSubscription.sampleTypes(for: VLDHealthKitSubscriptionSet.fitness))

        VLDHealthKitManager.sharedInstance().setSubscriptions(sampleTypes, completion: nil)
    } else {
        VLDHealthKitManager.sharedInstance().setSubscriptions([], completion: nil)
    }
}

Retrieve data continuously

To properly enable the continous delivery of data in the background or foreground, the subscription observers need to be recreated immediately when the app is launched from a suspend or terminated state. To do this, you need to call [VLDHealthKitManager observeCurrentSubscriptions] inside your application delegate’s application:didFinishLaunchingWithOptions: fuction. Example:

func application(_ application: UIApplication didFinishLaunchingWithOptions launchOptions: [UIApplicationLaunchOptionsKey : Any]? = nil) -> Bool {
    VLDHealthKitManager.sharedInstance().observeCurrentSubscriptions()
    return true
}

Note: Calling [[VLDSession] sharedInstance] endSession] in Objective-C or VLDSession.sharedInstance().end() in Swift will remove all HealthKit subscriptions and stop listening for new data.

Subscribe to Intrday steps

The Validic Mobile library supports retreiving more fine grain step data through VLDIntraday. If enabled via your SDK this will automatically be gathered when subscripting to VLDHealthKitSubscriptionSetRoutine. This is a premium feature and is not enabled by default, if you have access you can set processIntraday to YES to get intraday step data sent to Inform.

Fetch historical data

The Validic Mobile library provides the ability to query 6 months of data for a subset of data types provided by HealthKit by specifying one of more values of the VLDHealthKitHistoricalSet enum.

Two historical sets are available

  • VLDHealthKitHistoricalSetRoutine - Step data
  • VLDHealthKitHistoricalSetFitness - Workout data
  • VLDHealthKitHistoricalSetIntraday - Intraday step data (Premium feature, with only 7 days of historical data)

To fetch 6 months of historical HealthKit data, call the fetchHistoricalSets: method on VLDHealthKitManager and pass in the datasets you want to fetch. Example:

VLDHealthKitManager.sharedInstance().fetchHistoricalSets([NSNumber(value:VLDHealthKitHistoricalSet.fitness.rawValue),
                                                          NSNumber(value:VLDHealthKitHistoricalSet.routine.rawValue)]) {
                                                          (results:[AnyHashable : Any]?, error:Error?) in
    // historical fetch complete
}

Doing this may display a permission dialogue from HealthKit so it’s important to call this at an appropriate time in your app. It is recommended to explain to the user why you want this data before attempting to fetch it. This operation may take several seconds to complete so it would be advisable to display an activity indicator to the user until the completion block is called. There should be no need to call this method more than once for a user. When the fetch completes all the data will have been fetched locally and queued up for submission to the server. The amount of time needed to upload the records may vary based on the user’s internet speed. The queued records are uploaded automatically by the library based on connectivity, but it is possible for the user to suspend the app before all the records have been uploaded, the remaining records will be uploaded when the user resumes the app. This should be kept in mind when receiving records from the Validic server.

Considerations

Passive Reading Sync

There are situations where Apple Health passive reading is stopped and requires the app to be relaunched. These situations include:

  • When the user explicitly kills the host app by swiping up on it from the mutitasking view.
  • When the OS kills the app due to low memory, low battery, etc.
  • When the device is rebooted.

The user must restart the host app to resume passive reading of Apple Health data.

VitalSnap (OCR)


Setup

  • The OCR framework uses the camera and requires filling in the Privacy - Camera Usage Description key and value if edited in Xcode.

If viewing the raw source add the NSCameraUsageDescription key as displayed below.

<key>NSCameraUsageDescription</key>
<string>Get VitalSnap readings</string>

Overview

The Validic mobile library OCR feature provides the capability to obtain readings from devices without requiring Bluetooth or HealthKit integration.

OCR Peripherals

VLDOCRPeripheral represents peripheral models that can be processed by OCR.

A peripheral object contains various properties which can be displayed to the user:

  • name - Name of the peripheral comprised of the manufacturer name and model number.
  • imageURL - URL for an image of the peripheral.
  • overlayImage - UIImage of the overlay used to position the peripheral within the camera preview.

To obtain a VLDOCRPeripheral, several class methods are provided to be able to retrieve one or more supported peripherals.

// Retreive a specific peripheral
VLDOCRPeripheral *peripheral = [VLDOCRPeripheral peripheralForID:1];
// or by type
NSArray *peripherals = [VLDOCRPeripheral peripheralsOfType: VLDPeripheralTypeGlucoseMeter];
// or retrieve a list of all supported peripherals
NSArray *peripherals = [VLDOCRPeripheral supportedPeripherals];

// Retreive a specific peripheral
let peripheral = VLDOCRPeripheral(forID: 1)
// or by type
let peripherals = VLDOCRPeripheral.peripherals(of: .glucoseMeter)
// or retrieve a list of all supported peripherals
let peripherals = VLDOCRPeripheral.supportedPeripherals()

OCR View controller

The VLDOCRViewController provides a simple interface to optically scan a peripheral and provide the resulting reading. This view controller presents a prepackaged view and is typically displayed modally. It presents a camera view with an overlay appropriate to the peripheral being scanned. Partial results are displayed in the view while recognition is in progress. When it converges on a value, the delegate method, ocrViewController:didCompleteReading:image:metadata: is called with the results. An example application, “OCR example”, is provided, written in Swift which illustrates this OCR API. It is contained within the “Example Apps/Swift OCR” directory in the library download.

The app must have access to the camera. Permission will be requested on first launch. If the library is unable to access the camera, the delegate method, ocrViewControllerWasDeniedCameraAuthorization: is called.

The info.plist must also include a Camera Usage Description.

The presented view provides a button to cancel OCR. If the user cancels, the delegate method, ocrViewControllerDidCancel: is called.

When any of the three delegate methods are invoked, the view controller should be dismissed.

The following example constructs a VLDOCRViewController for the designated peripheral and presents it.

if let controller = VLDOCRViewController(ocrPeripheralID: 3) {
   controller.delegate = self
   self.present(controller, animated: true, completion: nil)
}

Delegate callbacks dismiss the view controller and handle the returned record. The recognized value returned in the delegate call back should be displayed to the user so that they can verify the value and modify it if incorrect. The image that was recognized is also provided and can be displayed to the user to verify the value.

func ocrViewControllerDidCancel(_ viewController: VLDOCRViewController) {
  viewController.dismiss(animated: true, completion: nil);
}

func ocrViewControllerWasDeniedCameraAuthorization(_ viewController: VLDOCRViewController) {
    print("Unable to access camera")
    viewController.dismiss(animated: true, completion: nil);
}

func ocrViewController(_ viewController: VLDOCRViewController, didCompleteReading record: VLDRecord?, image: UIImage?, metadata: [AnyHashable : Any]?) {
    // Display the value and image, allow the user to correct
    viewController.dismiss(animated: true, completion: nil);
}

The record received from the OCR View Controller should be verified by the user and then submitted to the Validic server.

// After verification, queue the record and image to be uploaded to the server
VLDSession.sharedInstance().submitRecord(record, image: image)

Runtime unit selection

For any glucose meter in our lineup of supported meters, you can now specify mmol/l or mg/dL at runtime for a given reading. If no unit is provided, mg/dL is assumed.

An example using the VLDOCRViewController:

ocrViewController = VLDOCRViewController(ocrPeripheralID: 9, glucoseUnit: .MMOLL)

OCR - Custom view (optional)

If more control over the OCR view is needed, a custom view can be implemented to perform OCR using the [VLDOCRController](Classes/VLDOCRController.html) class. The simpler [VLDOCRViewController](Classes/VLDOCRViewController.html) is recommended unless customizing the view is required. An example application, “VitalSnap example”, is provided written in Swift which illustrates this OCR API. It is contained within the “Example apps/Swift VitalSnap” directory in the library download.

Process overview

An instance of the VLDOCRController class is used to manage the recognition process. A VLDOCRPeripheral represents the peripheral being scanned. The controller is initialized with a peripheral object.

The recognition process involves a video camera preview layer and an overlay image, both obtained from the controller. The overlay image must be precisely positioned over the preview layer for proper alignment and recognition using a frame provided by the controller.

The app creates a view hierarchy where a parent view contains two subviews (preview and overlay). The controller is configured with the size of the preview layer and it generates the appropriate frame for the overlay image view.

OCR processing begins as soon as the controller is initialized. A delegate is called with intermediate and final results. The camera capture session ends when the controller is deallocated.

View structure

Two different approaches can be used to structure views for the preview and overlay, using either a UIImageView or CALayer for the overlay image.

In the preferred view-based approach, a parent view contains two subviews, one for the preview and the other for the overlay image. The preview layer is obtained from the VLDOCRController and added as a sublayer to the preview view. Once this layer is added, no subviews of the preview view will be visible. The overlay view, typically a UIImageView, and sibling of the overlay view, contains the overlay image obtained from the VLDOCRController, positioned to the frame specified by the controller. The origin of both views is assumed to be [0,0] within their parent. The parent and preview view are typically full screen.

In the alternate approach, a single view is used. The preview layer is added to this view and an additional CALayer is created, the overlay image is set on that CALayer and it is added as another sublayer to the same view. The overlay layer’s frame must be set to the frame given by the VLDOCRController.

Initialize VLDOCRController

The VLDOCRController requires a VLDOCRPeripheral for its initializers.

Once a peripheral is obtained, construct the VLDOCRController and assign its delegate.

// Maintain a reference to the controller
var controller: VLDOCRController?
...
self.controller = VLDOCRController(ocrPeripheral: peripheral)
// Assign a delegate
self.controller.delegate = self

Preview

The camera preview layer is obtained from VLDOCRController and is added as a sublayer to a view within a view hierarchy as described under View Structure.

// Property or IBOutlet
@IBOutlet var previewView: UIView!

// Typically set up in ViewDidLoad
override func viewDidLoad() {
    if let previewLayer: AVCaptureVideoPreviewLayer = controller.previewLayer {
        previewView.layer.addSublayer(previewLayer)

Set the previewLayer’s frame to match those of its containing preview view. Typically within viewDidLayoutSubviews.

override func viewDidLayoutSubviews() {
    self.controller.previewLayer?.frame = self.previewView.bounds

Overlay in a view

An overlay image is displayed over the preview layer using a specific frame calculated by VLDOCRController. The image is obtained from the VLDOCRPeripheral used to initialize the VLDOCRController.

@IBOutlet var overlayView: UIImageView!

override func viewDidLoad() {
    // let peripheral: VLDOCRPeripheral = ...
    overlayView.image = peripheral.overlayImage()

Whenever the preview layer’s frame changes, the controller needs to be informed by invoking configureForPreviewLayerSize:. After this call, the overlayView’s frame should be set using the overlayFrame property of the VLDOCRController.

override func viewDidLayoutSubviews() {
    // Configure VLDOCRController with the current preview layer size
    self.controller.configureForPreviewLayerSize(previewLayer.bounds.size)
    self.overlayView.frame = self.controller.overlayFrame

Process results

During OCR processing, methods on a delegate conforming to the VLDOCRControllerDelegate protocol are invoked.

ocrController:didProcessResult: is invoked for each camera frame captured and provides intermediate results. The VLDOCRResult object contains the current recognized string, an object describing possible glare, and the cropped image that was associated with this incomplete result. The result string can be displayed to the user as an indication of what portion of the display is not being recognized. Depending on the peripheral, the result string may contain linefeeds representing multiple lines being recognized.

func ocrController(_ ocrController: VLDOCRController, didProcessResult result: VLDOCRResult?) {
    if let result = result {
        NSLog("Partial result \(result.resultString)")
        let resultImage = result.image
    }
}

The ocrController:didCompleteReading:image:forPeripheral:metadata: delegate method is invoked when OCR processing has completed with reasonably high confidence.

func ocrController(ocrController: VLDOCRController!, didCompleteReading record: VLDRecord!, image: UIImage!, forPeripheral peripheral: VLDOCRPeripheral!, metadata: [NSObject : AnyObject]!) {
    // Obtain fields from the record to display to the user
    if peripheral.type == VLDPeripheralType.glucoseMeter {
        if let diabetesRecord = record as? VLDDiabetes {
            let bloodGlucose: NSNumber? = diabetesRecord.bloodGlucose

            // Obtain the captured image, display to the user for verification of reading
            var verificationImageView: UIImageView
            verificationImageView.image = image
        }
    }
}

The value received from the OCR controller should be verified by the user and then submitted to the Validic server.

// After verification, queue the record and image to be uploaded to the server
VLDSession.sharedInstance().submitRecord(record, image: image)

The delegate is passed a VLDRecord subclass appropriate for the peripheral, the matching cropped preview image and additional metadata. The recognized values returned in the record should be visually validated by the user. The cropped preview image can be displayed to the user to validate the recognized values before uploading to the server.

When the user approves of the values, the record can be uploaded as described in Managing a Session.

OCR processing lifecycle

OCR processing commences when the VLDOCRController is instantiated. The camera preview session is stopped when the VLDOCRController is deallocated. OCR processing stops when the final result delegate method is invoked or when the controller is deallocated. To restart or to work with a different peripheral, construct a new VLDOCRController.

Alternate: Overlay in a CALayer

Instead of placing the overlay image within a sibling view in a view hierarchy, the overlay image can be displayed in a CALayer added to the same view containing the preview layer. A separate view for the overlay is unnecessary.

var overlayLayer:CALayer?
...
override func viewDidLoad() {
    self.overlayLayer = CALayer()
    self.overlayLayer.contents = peripheral.overlayImage()?.cgImage
    self.previewLayer.addSublayer(overlayLayer)

The overlayLayer’s frame needs to be set when the contain view’s frame changes,

override func viewDidLayoutSubviews() {
    self.controller.configure(forPreviewLayerSize:(self.controller.previewLayer.bounds.size)!)
    self.overlayLayer.frame = self.controller.overlayFrame

LifeScan


❗️

Approval Required

The LifeScan integration requires pre-approval for LifeScan's OneTouch Mobile Connectivity Kit (MCK). Please reach out to Validic Support at [email protected] if you are interested in LifeScan.

Overview

Validic One Touch framework is a light wrapper around the One Touch native library in order to facilitate easy storage of glucose readings into the Validic platform.

Setup

The Onetouch framework requires filling in the Privacy - Bluetooth Peripheral Usage Description key and value in the projects info.plist.

If viewing the raw source add the NSBluetoothPeripheralUsageDescription key as displayed below.

 <key>NSBluetoothPeripheralUsageDescription</key>
 <string>Get Bluetoth readings</string>

If these values are not provided, the app will crash at runtime with an error reported to the console log.

The Validic One Touch framework requires linking to both the ValidicCore.framework and the OneTouchMobileConnectivityKit.framework

Supported Peripherals

Validic One Touch currently supports the OneTouch Verio Flex glucose meter.

Scan

To start scanning:

 let oneTouch = VLDOneTouchController.shared
 oneTouch.scanForDevices()

To cancel scanning:

 let oneTouch = VLDOneTouchController.shared
 oneTouch.cancelScan()

To see found devices:

 let oneTouch = VLDOneTouchController.shared
 print oneTouch.discoveredDevices

Pair

In order to pair with a device, first scan for available devices then select a device to pair to.

 let oneTouch = VLDOneTouchController.shared
 oneTouch.discoveredDevices.forEach { device in
     oneTouch.pair(device: device) { (device, error) in
         //Handle success or failure
     }
 }

Read

After pairing, a device can be read from. Records are returned as a VLDDiabetes record, and can then be submitted to the Validic platform. Paired devices are available in the pairedDevices property.

 let oneTouch = VLDOneTouchController.shared
 oneTouch.pairedDevices.forEach { (device) in
     oneTouch.getRecords(for: device, completion: { (device, error, records) in
         VLDSession.sharedInstance()?.submitRecords(records)
     })
 }

Passive Read

To enable background reading of One Touch devices set the passiveRead property to true.

 let oneTouch = VLDOneTouchController.shared
 oneTouch.passiveRead = true

This will submit readings for any paired One Touch device automatically. A notification is fired with the name kVLDBluetoothPassiveDidReadNotification, which can be observed to react to this behavior.

Considerations

  • The native library for One Touch requires a license that must be provided for their SDK, and in turn the ValidicOneTouch.framework to function.

  • Attempting to take a reading from an unpaired device can start the pairing flow. This is a feature of the OneTouch SDK and cannot be overriden.

  • If Passive Reading is enabled while in the foreground, that functionality may intercept a read event before a manual call to getReadings, which would result in only the passive read or active read showing records.

Updated 21 days ago


What's Next

Review the Reference documentation for the iOS native SDK:

Core
Bluetooth
Healthkit
VitalSnap (OCR)

iOS Native SDK


validic_ios_native_1.12.2

Suggested Edits are limited on API Reference Pages

You can only suggest edits to Markdown body content, but not to the API spec.
